PLL 2K WiFi Pixel LED Controller – 10+ Size Multi-Pattern Controller with Live Mobile & Text Control
📌 Important Info
⭐ Quick Highlights
Interface
Mobile se Control
Library Bank
10+ Sizes in 1 Card
Wiring Mode
S / Z WiFi Toggle
Live Messaging
Name Type & Send
Realtime Tuning
Speed, Dim & Border
Special Effect
Tiranga Effect Ready
Product Overview & Long-Term Benefits

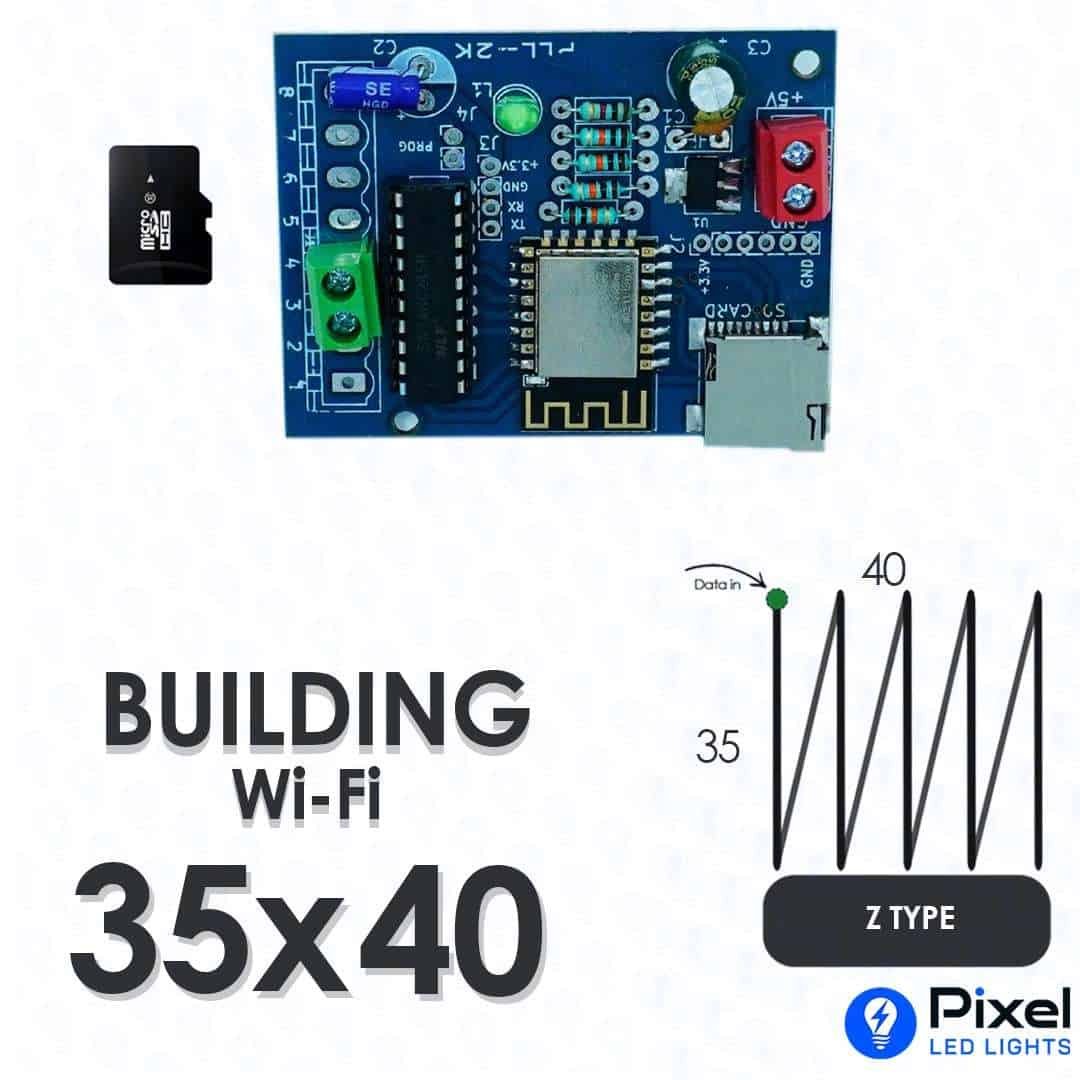

Tent house toran setups, wedding entrance gates, event stages, building front elevations aur festive decoration par kaam karte waqt alag-alag matrix sizes manage karna aksar musibat ban jata hai. Hamara PLL 2K WiFi Pixel LED Controller isi field-level pareshani ko door karne ke liye banaya gaya hai. Purane PLL2000 controller me har naye size ke liye SD card bahar nikalna padta tha aur S ya Z wiring pattern pehle se fix hota tha. Is upgraded model me ek hi SD card me 10 se zyada standard sizes pehle se load milte hain. Size badalna ho ya wiring ko S pattern se Z pattern me switch karna ho, aapko bas apne mobile se connect karke select karna hai—site par laptop ya computer ki zaroorat bilkul khatam ho jaati hai.
Is controller me live messaging feature milta hai: shaadi ke gate par dulha-dulhan ka naam, dukan ka board, ya festive greetings seedhe mobile se type karke "Send" dabayein aur wo turant lights par chalne lagta hai. Naam ke peeche sundar dynamic text aur colorful background effects chalte hain. Mobile screen par diye gaye sliders se speed, brightness aur border design ko realtime me kam ya zyada kiya ja sakta hai. National festival jaise 15 August aur 26 January ke liye isme Tiranga effect pehle se built-in hai. Yeh controller strictly 5V DC power par operate hota hai aur building ya toran dono par lagane ke liye ek reliable aur fast setup solution hai.
PLL 2K WiFi Controller Kaise Use Karein – Step by Step Guide
Pehli baar laga rahe ho? Ye 8 steps follow karo, 10 minute mein setup ready.
STEP 1 • CONNECTION
Pixel LED aur SMPS Jodein
Pixel LED ki data wire aur 5V SMPS controller se jodo.
- Sirf 5V DC SMPS lagayein
- V+ aur GND check karo
- Data arrow ki direction dekho
STEP 2 • POWER ON
System Chalu Karein
SMPS on karo, controller chalu hote hi lights mein default effect chalne lagega.
- Power aate hi controller ON ho jayega
- Lights par default effect verify karein
STEP 3 • WIFI CONNECT
Mobile se WiFi Jodein
Mobile ki WiFi kholo aur controller ki WiFi [WIFI_NAME] se connect karo.
- Mobile WiFi list scan karein
- [WIFI_NAME] select karke connect karein
STEP 4 • CONTROL PAGE KHOLO
Control Page Kholo
Mobile mein [CONTROL_PAGE_OR_METHOD] kholo, controller ka control page aa jayega.
- [CONTROL_PAGE_OR_METHOD] open karein
- Screen par dashboard settings display hongi
STEP 5 • SIZE CHUNO
Setup Ka Size Select Karein
List mein se apna size select karo. Sab sizes ek hi SD card mein hain, card nikalna nahi.
- 10+ preloaded sizes me se chunein
- Card nikaalne ki bilkul zaroorat nahi
STEP 6 • S / Z PATTERN SET KARO
Wiring Pattern Set Karein
Apni wiring ke hisaab se S ya Z chuno. Galat chune toh bas dobara switch karo.
- S-Type ya Z-Type option select karein
- Galat hone par turant mobile se change karein
STEP 7 • NAAM BHEJO
Live Name & Text Type Karein
Naam ya message type karo aur Send dabao, turant lights pe chalega. Text + background effects bhi chun sakte ho.
- Dulha-dulhan ya shop ka naam likhein
- Send dabate hi turant display hoga
- Text ke sath background animation chunein
STEP 8 • SPEED, BRIGHTNESS, BORDER
Speed, Brightness aur Border Set Karein
Sliders se teeno set karo, badlav turant dikhega. Tiranga effect bhi yahin se.
- Speed, brightness aur border sliders adjust karein
- Badlav turant lights par reflect hoga
- National events ke liye Tiranga effect select karein
Technical Specifications
🎯 Best Used For
Non-waterproof item. No Warranty on electronics. Manufactured by: pixelledlights.com
Strict Warning: Yeh WiFi controller strictly **5V DC Only** power supply par run hota hai. Sirf 5V DC SMPS lagayein, 12V ya 220V AC bilkul nahi. Galti se bhi is board me 12V SMPS ya direct 220V AC household electricity line connect na karein; unmatching ya high voltage dete hi internal WiFi chip, logic processor aur SD card socket instantly blast hoke permanent burn ho jayenge. Power wire lagate waqt hamesha aur strictly **Check V+ and GND** polarities verify karein aur signal line connect karte waqt LED string par di gayi **Check Data Arrow direction** rule ko follow karein.
