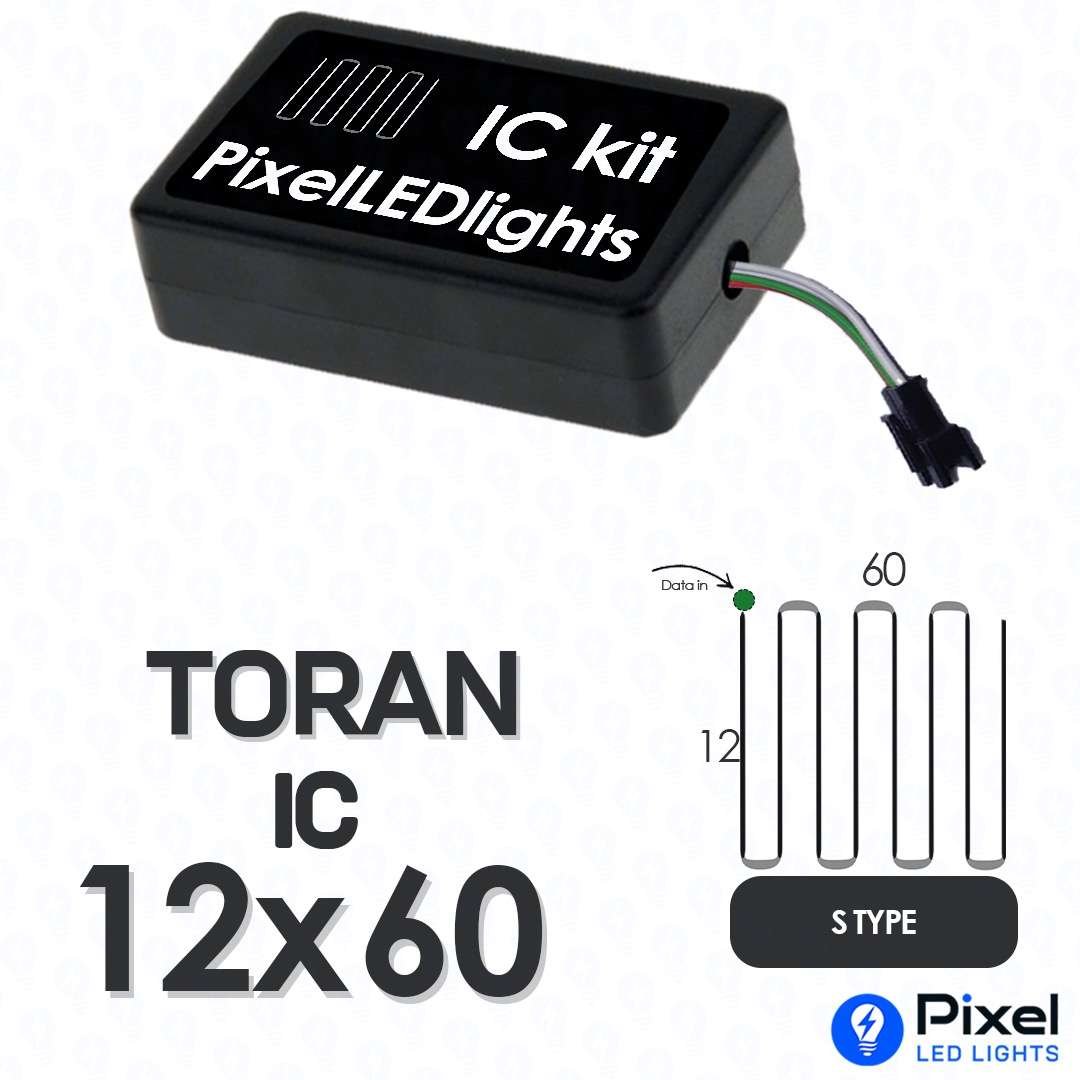

12 LED x 60 Line
🎇 Pixel LED IC Controller – For Circle S Type Support (WS2811 / WS2812B / UCS1903)
Supports S-Type Layouts | Variation-Based LED Capacity
Upgrade your Circle with this high-performance Pixel LED IC Controller for Circle, engineered for smooth RGB animations, stable data output, and true plug-and-play installation. This controller is avaialble across multiple decoration categories including toran pixel boards, chakri/sun patterns, LED display boards, gate and arch lighting, building façade lighting, wedding stage lighting, and pixel dance floors.
🔥 Key Features
- Multi-IC Compatibility: Works with WS2811, WS2812B, UCS1903.
- Variation-Based LED Capacity: LED capacity depends on the variation you select.
- 30+ Built-In RGB Effects: Running, chasing, wave, rainbow, meteor and more.
- Plug & Play Design: Connect 3-pin cable (V+, GND, Data) and it runs instantly.
- S-Type Layout Support: Controller is programmed For S type Circles.
- Durable Build: Flicker-free output, stable IC performance.
📌 Wiring Diagram
Here is the main wiring diagram for your S type Circle controller :
🎯 Also Available For :
- Toran pixel LED boards
- Chakri / Suraj pixel patterns
- LED name boards & display boards
- Gate & arch decoration
- Building & shopfront lighting
- Wedding & event pixel lighting
- Vertical pixel strips & rows
- Pixel dance floors and stage lighting
Note: Layout, LED count, size, and wiring all depend on the variation you select.
🛠 Technical Specifications
| Supported ICs | WS2811 / WS2812B / UCS1903 |
| LED Capacity | Depends on variation selected |
| Voltage | 5V |
| Layout Supported | S-Type |
| Output | 3-Pin (V+, GND, Data) |
| Waterproof | No | Warranty | No |
🏭 Manufactured By
PixelLedLights.com
⚡ Final Note
You will receive the exact controller programmed for the variation you select — including correct LED count, layout type, size, and wiring direction.
