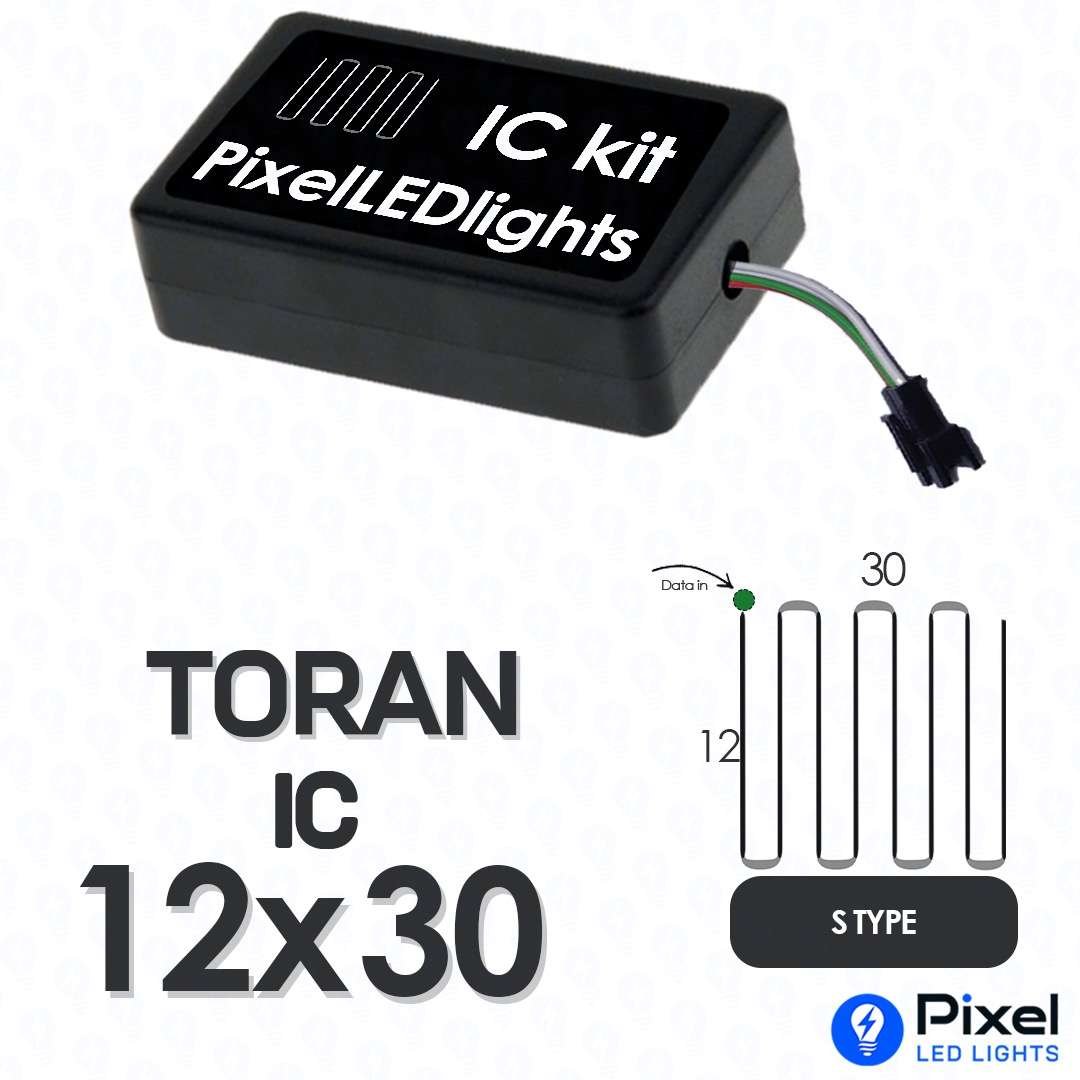

12 LED x 30 Line

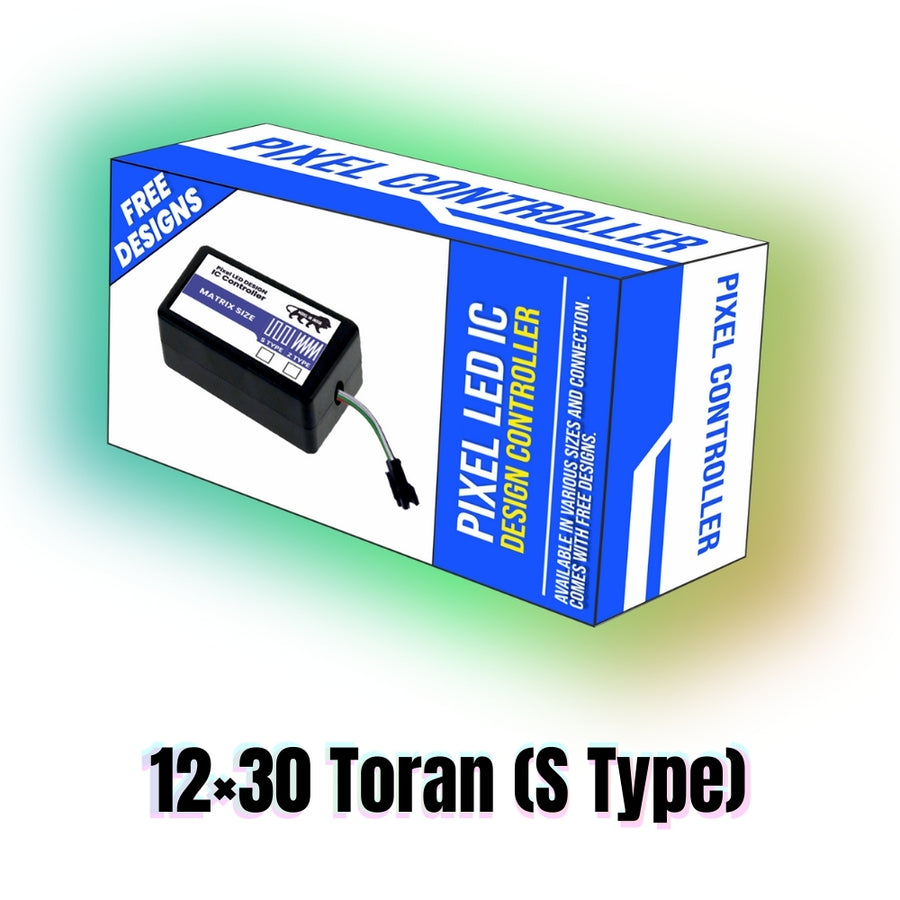

Pixel LED IC Controller for Toran S Type (12×30) – 30+ Dynamic Effects - SKU 2555
Voltage
5V DC Only
Effects
30+ Approx
Connect
3-Wire (V G D)
Type
S-Type
Quality
Pixelledlights Assured
Body
Plastic Case
⚙️ How It Works (Simple 3-Step Setup)
- Step 1: Apne Pixel LED setup ko controller ke connector se lagayein.
- Step 2: Video mein diye gaye diagram ke hisab se Red (V+), Black (GND), Green (Data) check karein.
- Step 3: Power ON karein. effects apne aap start ho jayenge.
Why Choose This Fixed Controller?
1. 30+ Professional Effects: Isme Running, Chasing, Wave, Rainbow, aur Meteor jaise sabhi premium designs pre-loaded hain.
2. Rock-Solid Stability: Smallest Chip hone ki wajah se jada power consume nahi karta hai.
3. Universal IC Support: Ye controller WS2811, UCS1903, aur WS2812B pixel LEDs ko 100% support karta hai.
4. Plug & Play: Bas 3-pin cable connect karein aur instant output payein. Programming ka koi jhanjhat nahi.
5. Perfect Mapping: Aapke order (12 Lines x 30 LED) aur Type (S-Type) ke hisab se designs perfect set karke milenge.
🎥 Original Product & Wiring Video
Video click karke Unmute karein
🎯 Best Used For Toran S-Type
Non-waterproof item. No Warranty on electronics. Manufactured by: pixelledlights.com
Galat connection (Plus/Minus swap) se controller turant jal sakta hai. Hamesha Video mein dikhaye gaye tareeke se V+, GND, aur Data wire connect karein.
🎇 Pixel LED IC Controller – For Circle S Type Support (WS2811 / WS2812B / UCS1903)
Supports S-Type Layouts | Variation-Based LED Capacity
Upgrade your Circle with this high-performance Pixel LED IC Controller for Circle, engineered for smooth RGB animations, stable data output, and true plug-and-play installation. This controller is avaialble across multiple decoration categories including toran pixel boards, chakri/sun patterns, LED display boards, gate and arch lighting, building façade lighting, wedding stage lighting, and pixel dance floors.
🔥 Key Features
- Multi-IC Compatibility: Works with WS2811, WS2812B, UCS1903.
- Variation-Based LED Capacity: LED capacity depends on the variation you select.
- 30+ Built-In RGB Effects: Running, chasing, wave, rainbow, meteor and more.
- Plug & Play Design: Connect 3-pin cable (V+, GND, Data) and it runs instantly.
- S-Type Layout Support: Controller is programmed For S type Circles.
- Durable Build: Flicker-free output, stable IC performance.
📌 Wiring Diagram
Here is the main wiring diagram for your S type Circle controller :
🎯 Also Available For :
- Toran pixel LED boards
- Chakri / Suraj pixel patterns
- LED name boards & display boards
- Gate & arch decoration
- Building & shopfront lighting
- Wedding & event pixel lighting
- Vertical pixel strips & rows
- Pixel dance floors and stage lighting
Note: Layout, LED count, size, and wiring all depend on the variation you select.
🛠 Technical Specifications
| Supported ICs | WS2811 / WS2812B / UCS1903 |
| LED Capacity | Depends on variation selected |
| Voltage | 5V |
| Layout Supported | S-Type |
| Output | 3-Pin (V+, GND, Data) |
| Waterproof | No | Warranty | No |
🏭 Manufactured By
PixelLedLights.com
⚡ Final Note
You will receive the exact controller programmed for the variation you select — including correct LED count, layout type, size, and wiring direction.
