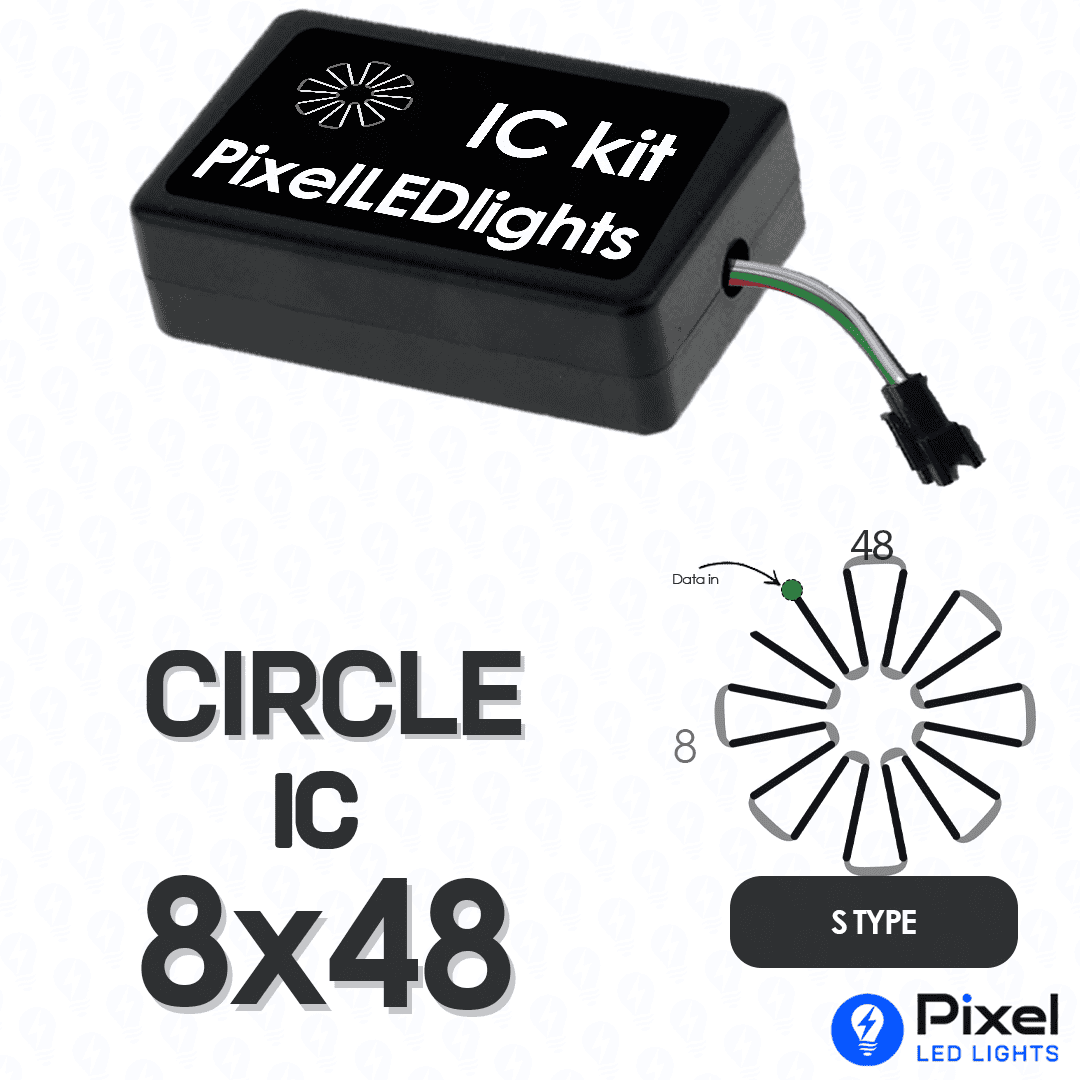

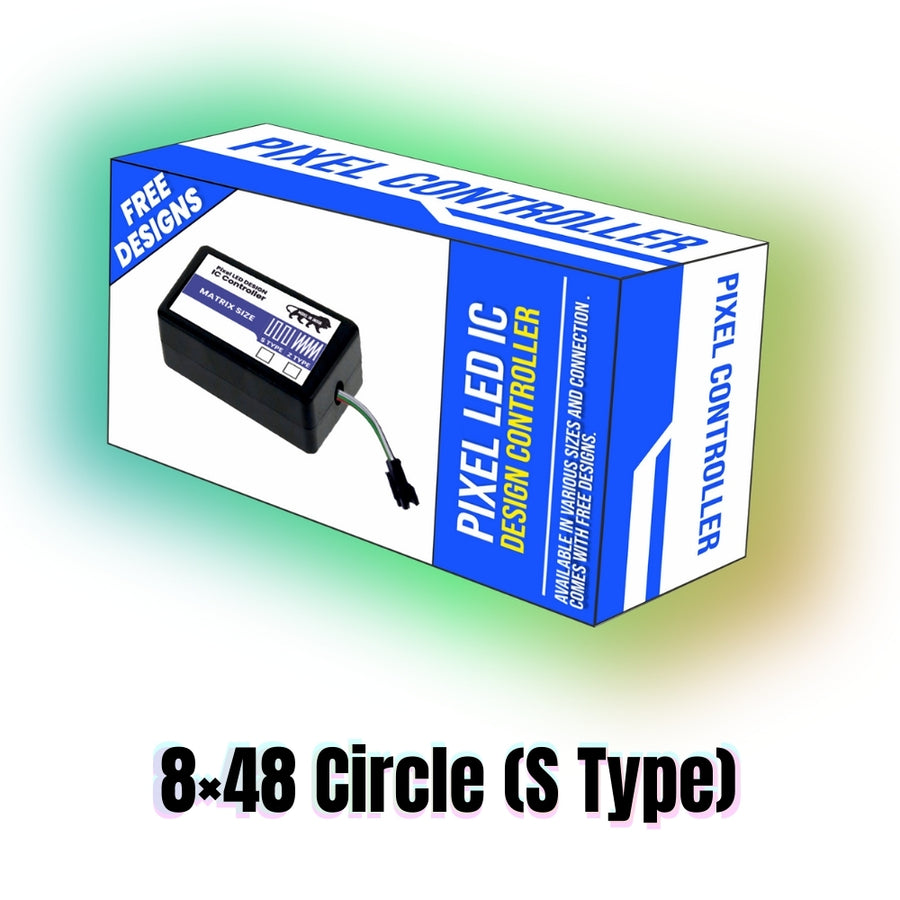

Pixel LED IC Controller for Circle S Type 8×48 – 30+ Dynamic Effects

Pixel LED IC Controller for Circle S Type 8×48 – 30+ Dynamic Effects

Rs. 199.00
SKU: 2720
🔥 Selling Fast – Order Now
👀 watching now
  • ✅ 30+ built-in vibrant LED lighting effects
    ✅ Compatible with WS2811, WS2812B, SK6812, APA102, and similar LEDs
    ✅ Pre-set dynamic modes—no programming needed
    ✅ Compact, durable, and energy-efficient design
    ✅ Ideal for Toran, DIY projects,temples, and festivals
    ✅ Advanced IC controllers for precise, customizable LED effects

Secure Payment
Fast Dispatch
WhatsApp Support

What you will receive in the Variant

What you will receive

Pixel LED IC Controller for Circle S Type (8×48) – 30+ Dynamic Effects - SKU 2720

✅ 30+ Built-In RGB Effects ✅ Size: 8 Lines x 48 LED (Lines x LED) ✅ Z-Type Layout Map ✅ Plug & Play (3-Wire)
⚡

Voltage

5V DC Only

🌈

Effects

30+ Approx

🔌

Connect

3-Wire (V G D)

📐

Type

Z-Type

💎

Quality

Pixelledlights Assured

🚫

Body

Plastic Case

⚙️ How It Works (Simple 3-Step Setup)

  • Step 1: Apne Pixel LED setup ko controller ke connector se lagayein.
  • Step 2: Video mein diye gaye diagram ke hisab se Red (V+), Black (GND), Green (Data) check karein.
  • Step 3: Power ON karein. effects apne aap start ho jayenge.

Why Choose This Fixed Controller?

1. 30+ Professional Effects: Isme Running, Chasing, Wave, Rainbow, aur Meteor jaise sabhi premium designs pre-loaded hain.

2. Rock-Solid Stability: Smallest Chip hone ki wajah se jada power consume nahi karta hai.

3. Universal IC Support: Ye controller WS2811, UCS1903, aur WS2812B pixel LEDs ko 100% support karta hai.

4. Plug & Play: Bas 3-pin cable connect karein aur instant output payein. Programming ka koi jhanjhat nahi.

5. Perfect Mapping: Aapke order (8 Lines x 48 LED) aur Type (Z-Type) ke hisab se designs perfect set karke milenge.

🎥 Original Product & Wiring Video

Video click karke Unmute karein

Specification Details
Product SKU2720
Controller Size8 Lines x 48 LED (Lines x LED)
Total LED Capacity384 Pixels
Operating Voltage5V DC Only
Wiring LogicZ-Type
Wiring3-Wire (V+, GND, Data)
Design Patterns30+ RGB Auto Actions
Warranty No Warranty

🎯 Best Used For Circle Z-Type

💍 Wedding Decor
✨ Diwali/Festival
🏢 Building Outline
🏬 Shop Gate
🛕 Temple Light
⛩️ Event Stage
📌 Maintenance:

Non-waterproof item. No Warranty on electronics. Manufactured by: pixelledlights.com

⚠️
FINAL WARNING: Check Connections

Galat connection (Plus/Minus swap) se controller turant jal sakta hai. Hamesha Video mein dikhaye gaye tareeke se V+, GND, aur Data wire connect karein.

🎇 Pixel LED IC Controller – For Circle S Type Support (WS2811 / WS2812B / UCS1903)

Supports S-Type Layouts | Variation-Based LED Capacity

Upgrade your Circle with this high-performance Pixel LED IC Controller for Circle, engineered for smooth RGB animations, stable data output, and true plug-and-play installation. This controller is avaialble across multiple decoration categories including toran pixel boards, chakri/sun patterns, LED display boards, gate and arch lighting, building façade lighting, wedding stage lighting, and pixel dance floors.

🔥 Key Features

  • Multi-IC Compatibility: Works with WS2811, WS2812B, UCS1903.
  • Variation-Based LED Capacity: LED capacity depends on the variation you select.
  • 30+ Built-In RGB Effects: Running, chasing, wave, rainbow, meteor and more.
  • Plug & Play Design: Connect 3-pin cable (V+, GND, Data) and it runs instantly.
  • S-Type Layout Support: Controller is programmed For S type Circles.
  • Durable Build: Flicker-free output, stable IC performance.

📌 Wiring Diagram

Here is the main wiring diagram for your S type Circle controller :

Pixel LED Wiring Diagram
⬇️ Download Diagram

🎯 Also Available For :

  • Toran pixel LED boards
  • Chakri / Suraj pixel patterns
  • LED name boards & display boards
  • Gate & arch decoration
  • Building & shopfront lighting
  • Wedding & event pixel lighting
  • Vertical pixel strips & rows
  • Pixel dance floors and stage lighting

Note: Layout, LED count, size, and wiring all depend on the variation you select.

🛠 Technical Specifications

Supported ICs WS2811 / WS2812B / UCS1903
LED Capacity Depends on variation selected
Voltage 5V
Layout Supported S-Type
Output 3-Pin (V+, GND, Data)
Waterproof No
Warranty No

🏭 Manufactured By

PixelLedLights.com

⚡ Final Note

You will receive the exact controller programmed for the variation you select — including correct LED count, layout type, size, and wiring direction.
