Pixel LED IC Circuits for Gate S Connection (8x24) - 5 Data Output - SKU 2122
Pixel LED IC Circuits for Gate S Connection (8x24) - 5 Data Output - SKU 2122

Pixel LED IC Circuits for Gate S Connection (8x24) - 5 Data Output - SKU 2122

S Type 30+ Inbuilt design With Connectors High quality Design Cheapest 5 data Output 5v Input
Rs. 499.00
SKU: 2122
🔥 Selling Fast – Order Now
👀 watching now
  • ✅ Gate pixel LED IC circuit
    ✅ 8x24 pixel layout
    ✅ S type connection
    ✅ 5 data output supported
    ✅ Smooth and uniform effects
    ✅ Gate decoration use
Secure Payment
Fast Dispatch
WhatsApp Support

What you will receive

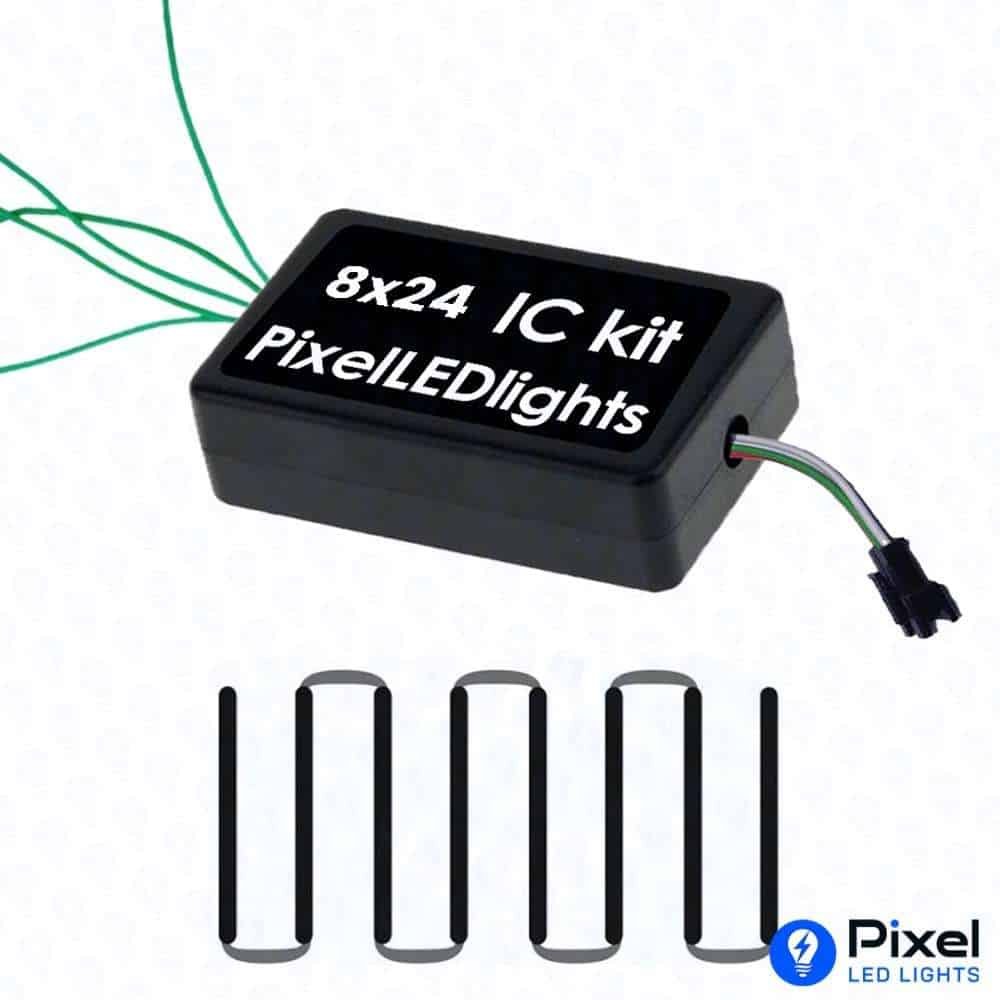

⛩️ Gate Lighting Specialized Core

Pixel LED IC Circuits for Gate S Connection (8x24) - 5 Data Output

✅ 8x24 Matrix Layout ✅ S-Type Connection Core ✅ 5 Data Outputs Supported ✅ 5V Low Voltage Input

⭐ Quick Highlights

📐

Matrix Size

8x24 Grid Layout

🔄

Wiring Mode

S-Type Connection

🔌

Data Rails

5 Data Outputs

✨

Library Bank

30+ Inbuilt Designs

⚡

Power Intake

5V DC Operating

🔌

Interface

With Connectors

Product Overview & Long-Term Benefits

Ghar, mandir, aur grand entryways ke swagat gates par jab aapko bade scale par pixel matrix structure khada karna hota hai, toh manual connection mapping aur lines alignment bohot bada stress ban jaati hain. Hamara 2122 Pixel LED IC Circuits for Gate S Connection (8x24) isi technical decoration wiring ko highly secure, systematic aur affordable banane ke liye manufactured kiya gaya hai. Yeh heavy-duty logic circuit board specially **8x24 pixel grid layout configuration** ke liye pre-programmed hai, jisme built-in S-Type Connection (Snake Pattern Wiring) mapping support milta hai. Is dynamic scheme ki wajah se loops ka jhanjhat bilkul end ho jata hai aur physical setup speed double ho jaati hai, jisse aapki decoration crew bina uljhan ke fast setup complete kar sakti hai.

Is advanced gate controller component ke andar 5 independent parallel data output lines ka solid microcontroller routing system diya gaya hai. Is technology ki badaulat sabhi data lines ek hi high frequency speed par synchronous tracking signal fire karti hain, jisse aapke display panels par smooth, lag-free aur uniform moving color chaser animations dekhne ko milte hain. System memory bank me pehle se hi **30+ gorgeous preloaded inbuilt design patterns** save hain, isliye alag se kisi external custom laptop mapping ya coding logic ki bilkul aavashyakta nahi padti. Iska high-efficiency structure jab standard **pure copper wire** tracks aur heavy connectors ke sath pair hota hai, toh voltage distribution ek barabar chalti hai aur circuit me **zero voltage drop** maintain rehta hai. Market me sabsbse cheap aur high-quality assurance ke sath, yeh circuit event decorators aur tent stage technical professionals ka pehla asset hai.

🏆 Pixelledlights vs Local Market

Feature ✨ Our Product Local Market
Output Synchronicity ✅ 5 Data Outputs Fully Synchronized ❌ Single data stream loop, pixel lag on higher columns
Wiring Mapping Style ✅ Smart S-Type Core Configuration (No Tangle) ❌ Disorganized trace paths, complex manual wire crossing
Preloaded Library ✅ 30+ High-Definition Premium Inbuilt Designs ❌ 5-10 repetitive, low-grade glitchy animations
Signal & Current Loss ✅ Optimized for 2.5mm Copper Core (Zero Voltage Drop) ❌ Low conductivity traces, end nodes dim out quickly

Technical Specifications

Specification Details
Product SKU Code2122
Matrix Grid Blueprint8 Nodes Width x 24 Lines Height Architecture
Connection Type MappingS-Type (Snake Matrix Pattern) Profile
Data Channel Split5 Parallel Data Output Rail Tracks
Preloaded Design Bank30+ High Definition Inbuilt Chaser Programs
Input Operating Voltage5V DC Only (Regulated Power Base)
Physical Interface GearHeavy Duty Attached 3-Pin Quick JST Connectors

🎯 Best Used For

⛩️Wedding Entrance Gates
🎪Event Entry Arches
🏢Pillar Silhouette Decor
📐8x24 Dynamic Matrix Boards
🪧Moving Pattern Gate Borders
🏰Temple Entryway Enclosures
🛠️
Maintenance & Policy

Non-waterproof item. No Warranty on electronics. Manufactured by: pixelledlights.com

⚠️
CRITICAL TECHNICAL WARNING

Strict Warning: Yeh internal processor chip logic controller strictly **5V DC Input** operating current zone par hi run karta hai. Galti se bhi is module panel core me direct 12V SMPS power lines ya standard 220V AC household electricity current wire switch points touch bilkul na karein; unmatching higher voltage lagate hi iski internal memory engine aur data rails fuse hoke permanently crash ho jayenge. Wiring loops attach karte waqt power terminals par hamesha aur strictly **Check V+ and GND** formatting checks apply karein aur synchronous animation flows track karne ke liye connections par series block di gayi **Check Data Arrow direction** rule ko follow karein.
