Works On 5v

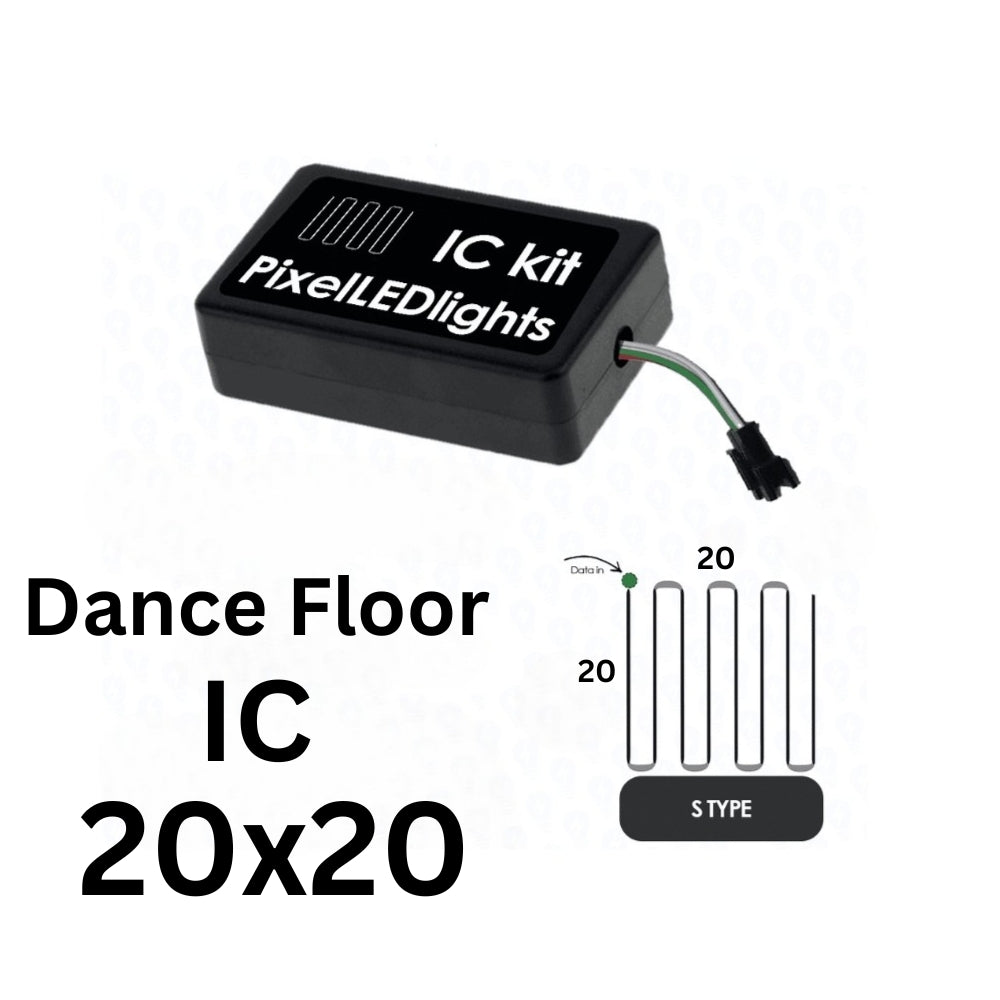

20x20 S Type IC Pixel LED Controller for Dance Floor Lighting – Same Timing & 20+ Patterns
⭐ Quick Highlights
Matrix Size
20 LED x 20 Lines
Wiring Mode
S-Type Connection
Synchronization
Same Timing Sync
Pattern Engine
25+ Built-In Effects
Power Current
5V DC Operating
Optimized For
Large Scale Floors
Product Overview & Long-Term Benefits
Bade events, grand commercial weddings, aur luxury lounge stages par ek massive aur high-density pixel matrix dance floor setup tayaar karne ke liye yeh 2884 20x20 S Type IC Pixel LED Controller aapke liye ultimate aur professional choice hai. Commercial level dance floors me sabsbadi dikkat yeh hoti hai ki badha layout hone ki wajah se multiple data rows aapas me wave match nahi kar paatin, jisse animations cut hone lagte hain. Is heavy-duty controller me diya gaya hai specialized Same Timing Output System. Is advanced internal clock micro-synchronizer ki badaulat sabhi 20 lines par data stream aur algorithms ek sath, ek hi microsecond frequency me fire hote hain, jisse aapke pixel dance floor floor panels par perfect symmetrical color sync aur uniform matrix visual effects dekhne ko milta hai.
Is smart controller module ko specially heavy **20 LED x 20 Lines** ke S-Type Connection (Snake Pattern Wiring) layout framework ke liye completely pre-programmed kiya gaya hai. Is snake type structural layout ki wajah se mega dance floor platforms me data routing aur field loop mapping ka jhanjhat 50% tak kam ho jata hai. Isme aapko alag se kisi complex manual computer programming ya animation designing ka load nahi lena; controller circuit me pehle se hi **25+ premium dynamic preloaded designs** aur ultra-vibrant chaser effects load hain. Iska solid logic driver architecture jab heavy **pure copper wire** tracks ke sath jura hota hai, toh yeh signal drop ko puri tarah rokk kar **zero voltage drop** ki security deta hai, jisse floor corners ke bulbs bhi ek barabar high brightness colors produce karte hain. Fast setup aur high standard reliability ke karan yeh tent house operators aur stage developers ke liye best automation core asset hai.
Technical Specifications
🎯 Best Used For
Non-waterproof item. No Warranty on electronics. Manufactured by: pixelledlights.com
Strict Warning: Yeh commercial computing dance floor controller strictly **5V DC Input** operating current parameter par hi run karne ke liye engineered hai. Galti se bhi is heavy module circuit box me direct 12V SMPS current lines ya household 220V AC direct supply switch boards connect bilkul na karein; unmatching input voltage load lagate hi iske logic clock loops aur micro computing core components instantly blow off hoke permanently burn ho jayenge. SMPS connectivity tayaar karte waqt controller mapping point par strictly **Check V+ and GND** properly aur data sequence direction balance rakhne ke liye physical routing panel par hamesha **Check Data Arrow direction** rule ko follow karein.
