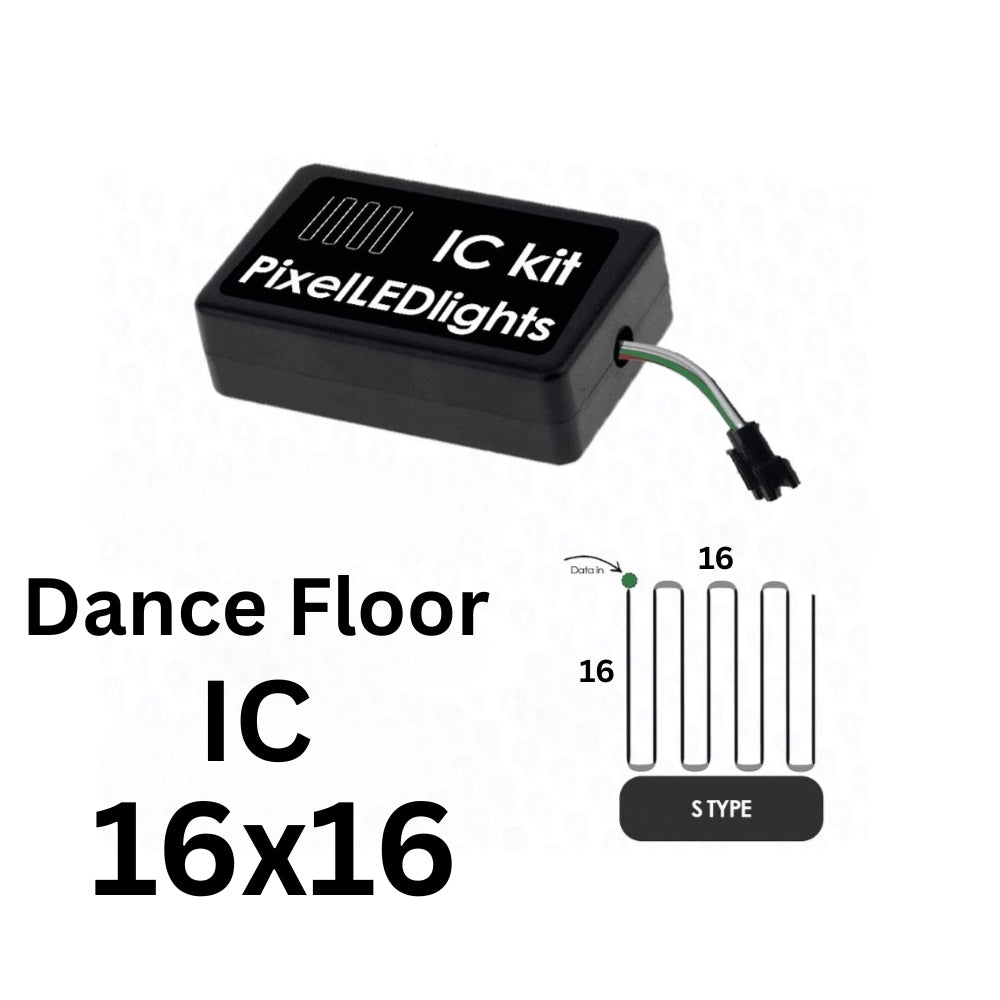

Works On 5v 16 Led x 16 Lines Same Timing Best For Dance Floor S Type 25+ Preloaded Designs
Rs. 350.00
SKU: 2883
🔥 Selling Fast – Order Now
👀 watching now

✅ 16x16 S Type Format – Covers large square dance floors
✅ IC Pixel Technology – Smooth animations & color sync
✅ Same Timing Output – Uniform display across LEDs
✅ 20+ Preloaded Patterns – Stunning visual effects
✅ Easy Setup – Ready to use with minimal wiring
✅ Perfect for Events – Dance floors, weddings, parties
✅ Long-Lasting Build – Designed for continuous operation

Secure Payment
Fast Dispatch
WhatsApp Support

What you will receive

🕺 Dance Floor Master

16x16 S Type IC Pixel LED Controller for Dance Floor Lighting – Same Timing & 20+ Patterns

✅ 16 LED x 16 Lines Grid ✅ Same Timing Perfect Sync ✅ 25+ Preloaded Designs ✅ Optimized S-Type Routing

⭐ Quick Highlights

📐

Matrix Size

16 LED x 16 Lines

🔄

Wiring Mode

S-Type Connection

⏱️

Synchronization

Same Timing Sync

✨

Pattern Engine

25+ Built-In Effects

🔌

Power Current

5V DC Operating

🕺

Optimized For

Large Square Floors

Product Overview & Long-Term Benefits

Bade events, grand weddings, aur party stages par ek seamless aur high-density pixel matrix dance floor setup tayaar karne ke liye yeh 2883 16x16 S Type IC Pixel LED Controller aapke liye ultimate aur automated choice hai. Commercial dance floors me sabse badi problem yeh hoti hai ki multiple layout lines aapas me match nahi karti, jisse animations aage-piche ho jaate hain. Is professional grade controller me diya gaya hai specialized Same Timing Output System. Is advanced hardware architecture ki madad se sabhi 16 lines par algorithms ek sath, ek hi microsecond me execute hote hain, jisse pure matrix floor par uniform animation color sync aur perfect symmetrical visual output milta hai.

Is chip controller ko specially S-Type Connection (Snake Pattern Wiring) format ke liye engineer kiya gaya hai, jo large square floor matrix platforms me wire mapping ke jhanjhat ko kafi hadd tak kam kar deta hai. Isme aapko alag se kisi custom program programming ya laptop setup ki bilkul zaroorat nahi hai; iske logic micro-board ke andar **25+ premium dynamic preloaded designs** pehle se programmed hain. High-grade signal drive architecture hone ke karan yeh thick **pure copper wire** tracks ke sath perfectly combine hota hai aur lines me **zero voltage drop** maintain rakhta hai, jisse floor ka har ek bulb ek barabar high brightness output deta hai. Fast setup, no tangle routing framework aur high durability ki wajah se yeh event operators aur stage experts ka pehla bharosa hai.

🏆 Pixelledlights vs Local Market

Feature ✨ Our Product Local Market
Line Synchronization ✅ Same Timing Output (Flawless Sync) ❌ Out-of-sync signals, jagged animations
Wiring Layout Style ✅ Pre-mapped S-Type Core (No Tangle) ❌ Messy tracking, slow mapping adjustments
Preloaded Library ✅ 25+ Gorgeous Built-in Dynamic Patterns ❌ 5-10 very basic and repetitive animations
Signal Data Architecture ✅ Optimized for 2.5mm Copper Core Tracks ❌ Weak drivers, data breaks on long floor runs

Technical Specifications

Specification Details
Product SKU Code2883
Matrix Grid Layout16 LED Nodes Width x 16 Lines Parallel (256 Nodes Total)
Connection ArchitectureS-Type (Snake Format) Series Mapping
Timing SynchronizationSame Timing Sync Output Logic Board
Preloaded Effects Bank25+ Inbuilt Professional Show Programs
Input Operating Voltage5V DC Only (Regulated Voltage Core)
IC Protocol SupportWS2811 / UCS1903 Pixel IC Elements
Installation ParameterPlug and Play Ready Layout Frame

🎯 Best Used For

🕺Pixel LED Dance Floors
🎪Mega Event Floorings
💍Wedding Barat Stages
🏢Square Ceiling Matrices
🪧Moving Pattern Signage
🏬Club & Disco Entrance Sets
🛠️
Maintenance & Policy

Non-waterproof item. No Warranty on electronics. Manufactured by: pixelledlights.com

⚠️
CRITICAL TECHNICAL WARNING

Strict Warning: Yeh computing dance floor controller strictly **5V DC Input** voltage range par hi kaam karne ke liye designed hai. Galti se bhi is control board module me 12V supply SMPS power lines ya direct 220V AC direct switch board connections touch bilkul na karein; unmatching high voltage lagate hi internal integrated processing logic chips instantly heat up hoke permanently burn ho jayenge. Controller terminals jode waqt hamesha circuit layout par **Check V+ and GND** properly monitor karein aur data synchronization mapping flows banaye rakhne ke liye sequence block par di gayi **Check Data Arrow direction** rule ko strictly follow karein.
