500 LED per channel

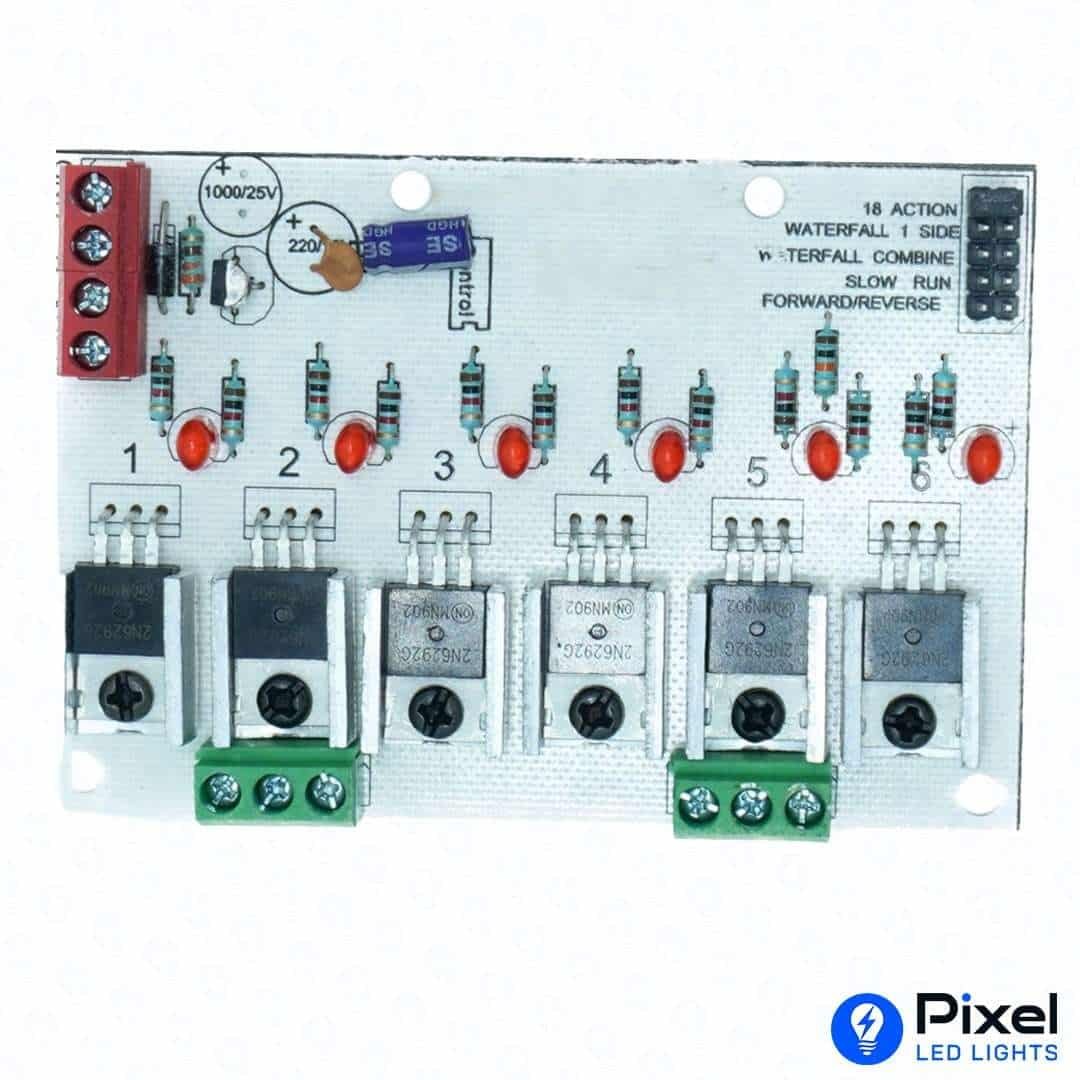

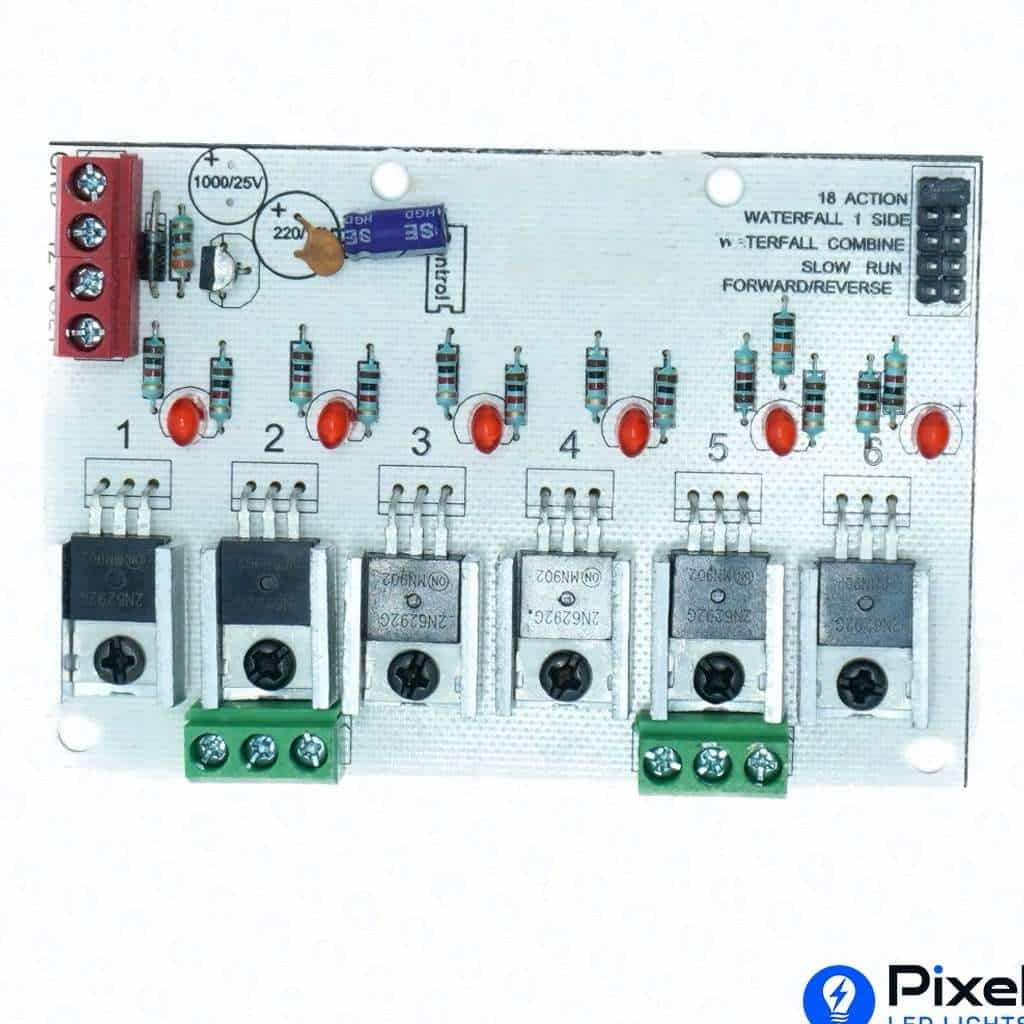

12V 6-Channel DC Chaser with Multi-Functions (32 Actions) - SKU 2036
⚡ Quick Highlights
Channels
6 Outputs
Capacity
~3000 LEDs
Effects
32 Actions
Control
Action Switch
Input
12V DC
Type
Chaser Board
More Details

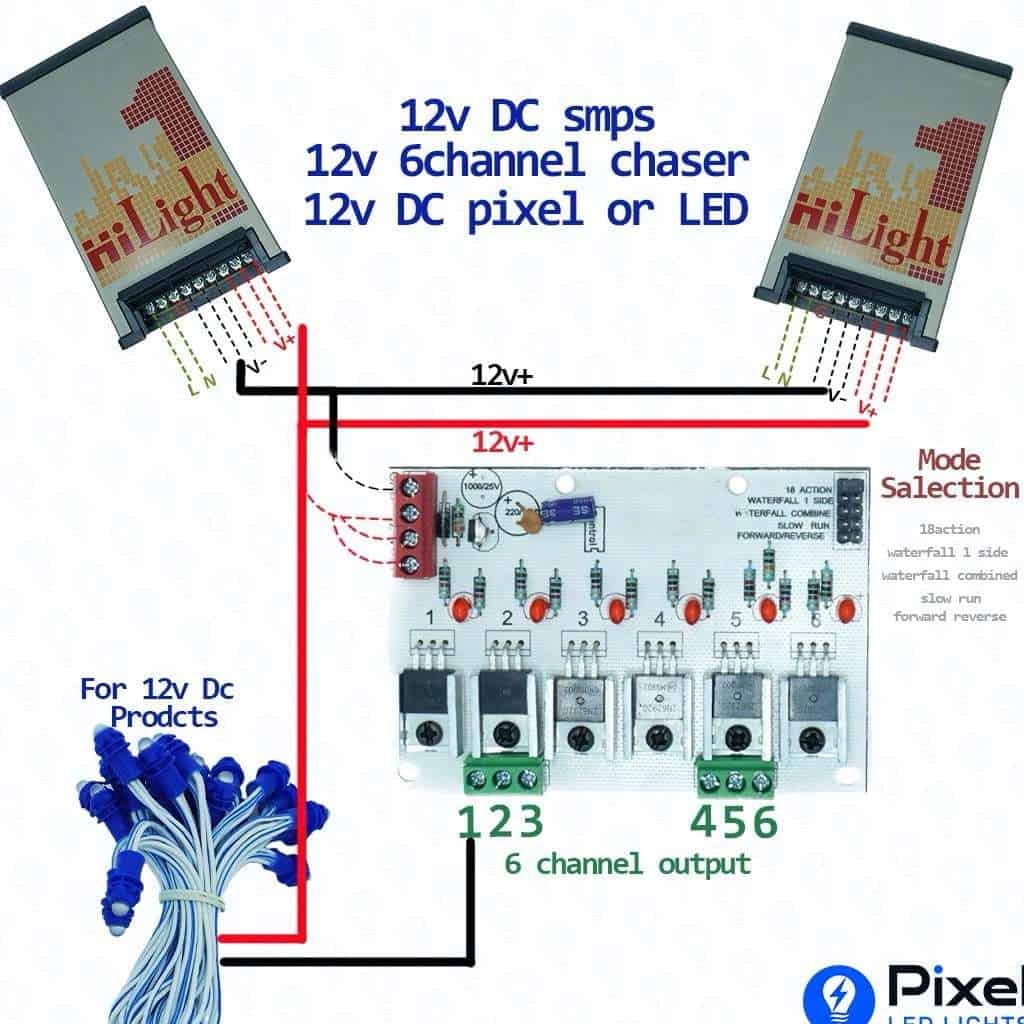

Bring your decorations to life with the **12V 6-Channel DC Chaser**. This heavy-duty controller is designed to drive standard LED strings, strips, or modules (2-wire) in a running sequence. With **6 Independent Channels**, you can create complex chasing, flashing, and wave effects that simple 2-channel controllers cannot match.
The board comes pre-programmed with **32 Dynamic Actions**, which you can easily cycle through using the onboard **Action Switch**. Capable of handling up to **500 LEDs per channel** (depending on the LED type and current), it is perfect for creating animated temple decorative lights, road gates, and festive building outlines running on a **12V DC Power Supply**.
✨ Why Choose This 6-Channel Chaser?
More channels mean smoother running effects and more complex animations compared to standard 2-channel flashers.
Includes variety of patterns like chase, build-up, fade, and flash to keep the display interesting.
Can drive approximately 500 LEDs per channel (depending on LED type), totaling up to 3000 LEDs.
Designed for 12V DC power, which is safer and more common for outdoor decorative modules.
Single button control to change patterns manually or set it to auto-cycle.
Technical Specifications
🎯 Perfect For
12V DC Input Only. Do not connect to 220V AC directly. Do not use for "Pixel" LEDs (WS2811) data line; this is for switching power to 2-wire LEDs. No Warranty.
